Color Coated Steel Coil
Color-coated sheet is based on galvanized sheet, galvalume sheet, zinc-aluminum-magnesium, aluminum-zinc-magnesium, aluminum-magnesium-manganese, stainless steel as the substrate, after surface pretreatment, using a roller coating method, coated with multiple layers of liquid paint, after baking Bake and cool.It uses polyester, silicon-modified polyester, high-weather-resistant polyester, polyvinylidene fluoride, epoxy, and high-sealing corrosion-resistant coatings. It has excellent durability, corrosion resistance, and moldability（formability）. Products are widely used in household appliances, decoration, construction, automotive and other industries.
| Product name | Color Coated Steel Coil |
| Grade | TSGCC/TDX51D/TDX52D |
| Thickness | 0.09-2.0mm |
| Width | 750-1250mm |
| Coil Weight | 2-10T |
| Coil ID | 508/610mm |
| Top coating thickness | 10-30um |
| Back coating thickness | 5-25um |
| Paint type | PE/SMP/HDP/PVDF |
| Base matenal | GI/GL/GA/AL/STS |
| Color | All RAL colors or customers samples color |
| Annual production capacity | 1000000T |
| Place of Origin | Shandong, China |
| Production Standard | EN/GB/AISI/ASTM/DIN/JIS |
| Delivery Time | 7-15 days/According to customer requirements |
| Brand Name | Xinhe |
| Certificate | ISO9001/ISO14001/ISO45001 |
| Payment | FOB 30% deposit,70% before shipment |
| Quality assurance | According to the order requirements |
| Packaging requirements | According to the order requirements |
| Product Name | Film thicknessμm | Core performance | T bend | MEK | Neutral salt spray | QUV-A | Recommended environment |
| Self-cleaning products | ≥25 | Carbon black experiment △E＜2, water contact angle ≥30 degrees | 2T | ≥100 | 1000 h | 3000 h | C3 level environment |
| Heat reflection products | ≥25 | TSR≥0.25，SRI：Light color≥78，other colours≥29 | 2T | ≥100 | 1000 h | 1500 h | C3 level environment |
| Anti-static products | ≥25 | Surface resistance 1066-1099Ω | 2T | ≥100 | 1000 h | 1500 h | C2 level environment |
| Antibacterial products | ≥25 | Activity against Staphylococcus aureus and E. coli＞2 | 2T | ≥100 | 1000 h | 1500 h | C2 level environment |
| Type of coating | Recommended substrate type | Coating thicknessμm | MEK | T bend | Porosity | 5%hydrochloric acid | 5%Sodium hydroxide | Neutral salt spray | Acid salt spray | Alkaline salt spray | QUV-A | Common environment | Dedicated environment | Recommended environment |
| Polyester（PE） | Z/AZ/ZM/AZM | ≥20 | ≥100 | 3T | / | 24 h | 24 h | 1000 h | / | / | 1000 h | 10 year | / | C2 environment |
| High weather resistance（HDP） | Z/AZ/ZM/AZM | ≥23 | ≥100 | 3T | / | 24 h | 24 h | 1500 h | / | / | 1500 h | 15 year | / | C3 environment |
| Silicon Reform（SMP） | Z/AZ/ZM/AZM | ≥23 | ≥100 | 3T | / | 24 h | 24 h | 1500 h | / | / | 1500 h | 15 year | / | C2 environment |
| Fluorocarbon（PVDF） | Z/AZ/ZM/AZM | ≥25 | ≥100 | 2T | / | 24 h | 24 h | 2000 h | / | / | 3000 h | 20~30 year | / | C4 environment |
| Polyurethane（PU） | Z/AZ/ZM/AZM | ≥40 | ≥100 | 2T | / | 24 h | 24 h | 720 h | / | / | 1000 h | 10~20 year | / | C2 environment |
| Hot film（VCM） | Z/AZ/ZM/AZM | ≥100 | / | 0T | / | 360 h | / | / | / | / | / | 10 year | / | C2 environment |
| Color printing | Z/AZ/ZM/AZM | ≥25 | ≥100 | 3T | / | 24 h | 24 h | 600 h | / | / | 1000 h | 10 year | / | C2 environment |
| Reticulated, suede | Z/AZ/ZM/AZM | ≥25 | ≥100 | 2T | / | 24 h | 24 h | 1000 h | / | / | 1000 h | 10 year | / | C2 environment |
| High corrosion-resistant polyester | Z/ZM/AZM | ≥25 | ≥1000 | 3T | 90V No breakdown | 120 h | 120 h | 2000 h | 1500 h | 1500 h | 2000 h | 15 year | 10 year | C5 environment |
| （PE•Pro） | ||||||||||||||
| High corrosion resistance and weather resistance polyester（HDP•Pro） | Z/ZM/AZM | ≥25 | ≥1000 | 3T | 90V No breakdown | 120 h | 120 h | 2500 h | 2000 h | 2000 h | 3000 h | 20 year | 15 year | C5 environment |
| Super corrosion resistant super weather resistant polyester（HDP•Plus） | Z/ZM/AZM | ≥30 | ≥1000 | 3T | 90V No breakdown | 360 h | 360 h | 4000 h | 3000 h | 3000 h | 4000 h | 25 year | 20 year | C5 environment |
| High corrosion resistance fluorocarbon aluminum magnesium manganese（PVDF•Pro） | Aluminum magnesium manganese | ≥25 | ≥1000 | 2T | 90V No breakdown | 240 h | 240 h | 10000 h | 5000 h | 5000 h | 10000 h | 50 year | / | Key industrial engineering, |
| National public projects | ||||||||||||||
| Super corrosion-resistant nano-fluorocarbon aluminum magnesium manganese（PVDF•Plus） | Aluminum magnesium manganese | ≥30 | ≥1000 | 2T | 90V No breakdown | 480 h | 480 h | 20000 h | 10000 h | 10000 h | 15000 h | 70 year | / | Key industrial engineering, |
| National public projects | ||||||||||||||
| Centennial stainless steel fluorocarbon（PVDF•Plus） | Stainless steel | ≥30 | ≥1000 | 2T | 90V No breakdown | 480 h | 480 h | 30000 h | 10000 h | 10000 h | 15000 h | 100 year | / | Key industrial engineering, |
| National public projects | ||||||||||||||
| High corrosion-resistant epoxy back paint | / | ≥12 | ≥100 | 4T | 67.5V No breakdown | 120 h | 120 h | 2000 h | 1500 h | 1500 h | / | / | / | Supporting the use of |
| Super corrosion-resistant epoxy back paint | / | ≥20 | ≥100 | 3T | 90V No breakdown | 240 h | 240 h | 3000 h | 2500 h | 2500 h | 2000 h | / | / | Supporting the use of |
Product Details
1）color coated galvanized steel coil
On the continuous unit, the galvanized steel strip and the galvanized steel strip (electro-galvanized and hot-dip galvanized) are used as the substrate, and the surface is pretreated (degreased and learned) and then coated with one or more layers by the method of roller coating. Liquid paint, the plate obtained after baking and cooling, is the coated steel plate.
2）Production process
Welding →Inlet Looper→Pre-treatment→Primer coat→Baking→Cooling→Uncoiling→Finish coat→Baking→Embossed or film→QC→Coiling.

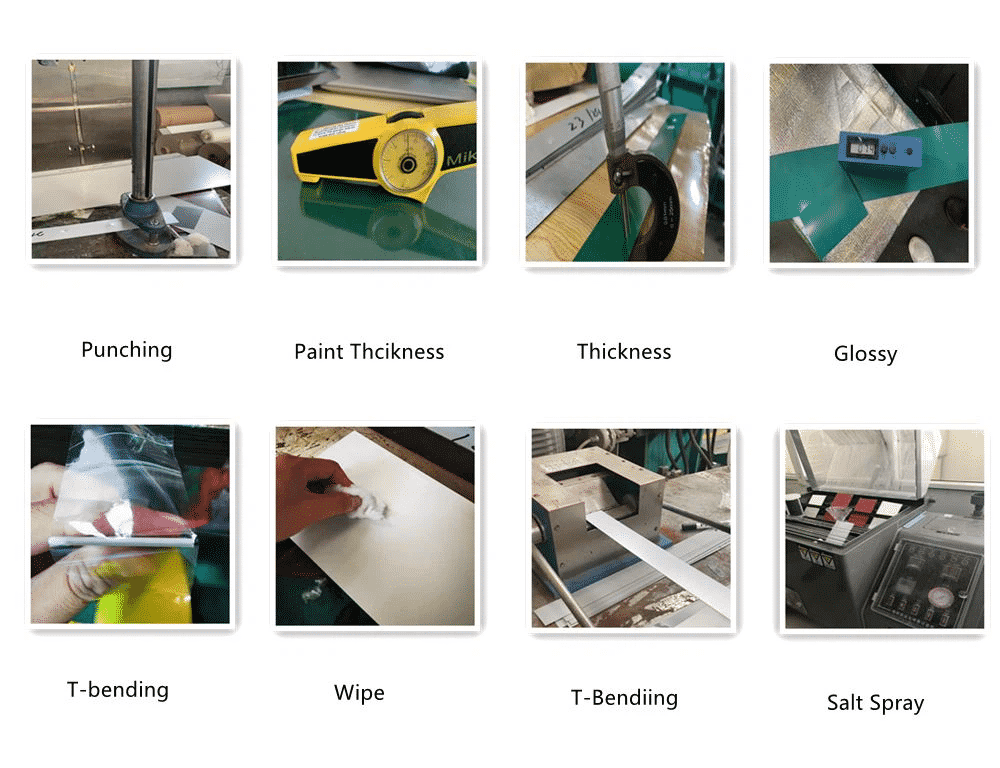

3) COILS TEST
Paint thickness:10-30um as your require
Glossy: Highlight(70-95), Matte(lower than 40), Medium gloss(40-60) as your requirment.
T-bending:0-3T as required
Wipe: can reach 200 times
Natural Salt Spray: More than 1000 hours. It is decided by paint thickness and different paint.PE more than 1000 hours.HDP more than 1500 hours. PVDF more than 2000 hours.
UV light experiment: for regular paint, not less than 500 hours.For matt and high paint, not less than 1000 hours
Our Advantage
15years experience
Free sample offered
6 product-lines
exported to 60+ countries
Factory direct supply
7*24 Professional service
Wrapped by plastic film and waterproof paper, iron sheet, and iron waist for outer packaging.
With wooden pallets for film coils and wrinkle coils. Or as your requested.
